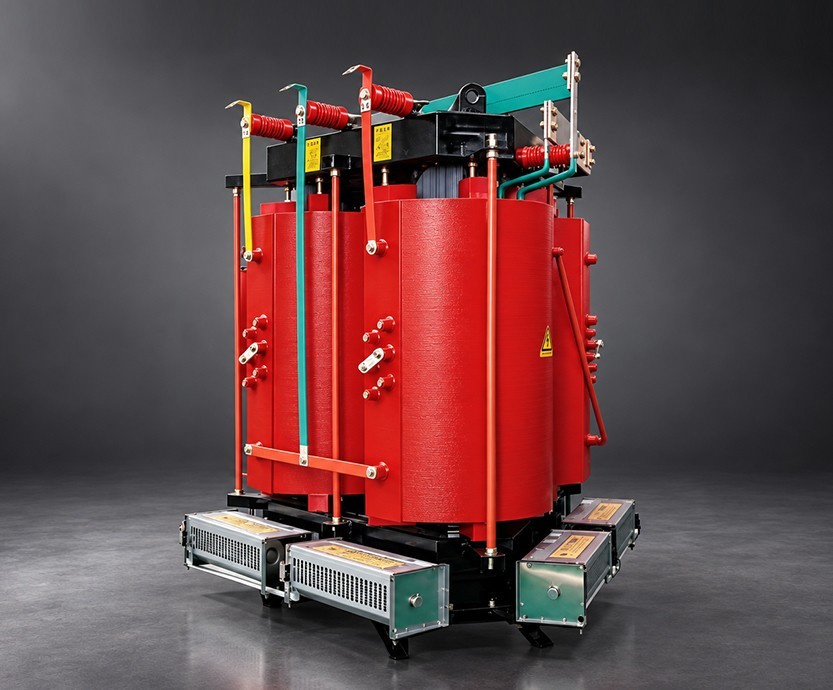

将立体卷铁心结构与浇注干式绕组相结合,适用于建筑、工厂和新能源配电。选型应协调环境温度、海拔、负荷性质及温控通风方案。立体卷铁心变压器关键部件是立体卷绕式铁心,整个铁心由三个完全相同的单框拼合而成,呈等边三角形立体排列,每个单框由若干根梯形料带依次连续卷绕而成,卷绕后单框横截面接近半圆形,拼合后横截面呈非常接近整圆形的准多边形。整个磁路中卷绕紧密,无空气隙,硅钢带高导磁方向和磁路方向完全一致,磁阻小,三相磁路长短一致,从而使三相平衡,减少变压器三次谐波等,节省材料提高性能降低损耗,降低空载电流,降低运行噪音等这些优点。
Oil free, with strong fire resistance, eliminating the risk of oil leakage; Capable of withstanding short-circuit current and overvoltage, and adapting to harsh environments.
Using environmentally friendly materials, low noise and no pollution, to assist in the construction of a green power grid.
Efficient cooling system ensures that the equipment maintains low temperature during long-term operation, effectively extending the service life of the equipment.
Humanized design, simple operation, convenient and fast daily inspection and maintenance, significantly reducing operating costs.
Durable shell design, impact resistance, corrosion resistance, able to adapt to various complex and harsh working environments.
Modular structure design, supporting quick disassembly and assembly, combined with intelligent monitoring system, making operation and maintenance work more worry free and effortless.
